Pipe Sizes 50 NB to 1200 NB
Design Standard BS 1042, ISO 5167, ASME, R.W. Miller, AGA
Pipe/Flange material Carbon Steel, Stainless Steel, Alloy Steel,Hastelloy, Titanium, Monel, etc.
NozzleMaterial Stainless Steel, Hastelloy,Titanium, Monel, etc.
pipe size 15 NB TO 1200 NB
Typical Applications Gases, Liquids, Steam

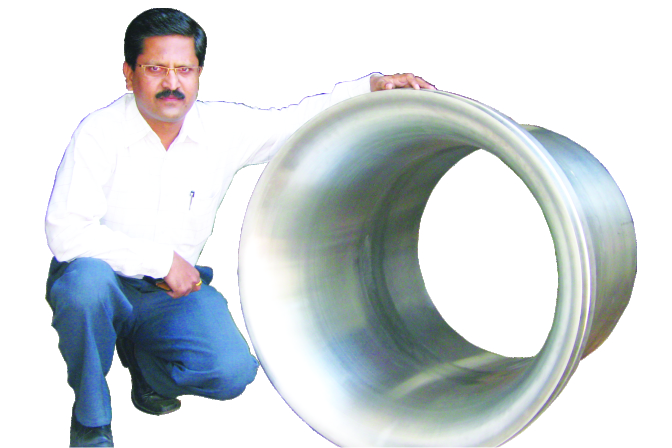

Long Radius Flow Nozzles are used when low permanent pressure loss is desired and high operating pressure and high operating temperatures are involved. These are precision machines as per various international standards. Long radius flow nozzles are generally butt welded in the pipe and has D and D/2 pressure taps. These nozzles can also be mounted between flanges like an orifice plate.
